Product Details

Pdf Reference

YVZ4-U, YVZ4V-R, CU/PVC/STA/PVC, NYBY

Code

YVZ4-U, YVZ4V-R, CU/PVC/STA/PVC, NYBY
U: Solid conductor
R: Stranded conductor
Standarts: Ts Iec 60502, Vde 0271

Application

Indoors and outdoors, in cable ducts, underground, in power or switching stations, local energy distributions, industrial plants, where there is risk of mechanical damage.

Technical Characteristic

Operating Temperature (max.): 70^oC
Operating Temperature: (max. 5 Sec.)
Crosssection <= 300 Mm: 160oC
Crosssection > 300 Mm: 140oC
Rated Voltage: 0.6/1 Kv
Bending Radius (min): 12xouter Diameter

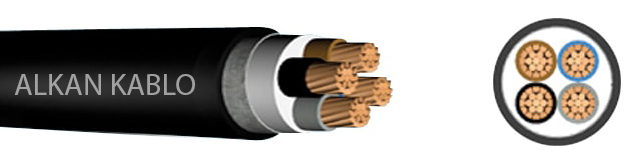

Construction

Solid Or Stranded Copper Conductor
Pvc Insulation
Filler
Galvanized Double Steel Tape Armoured
Pvc Outer Sheath
