PRODUCT DETAILS

Pdf Reference

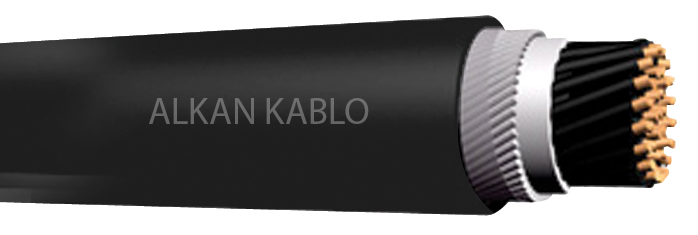

YVV-U, YVV-R, CU/PVC/PVC, NYY

Code

YVV-U, YVV-R, CU/PVC/PVC, NYY
U: Solid Conductor
R: Stranded Conductor
Standarts: Ts Iec 60502, Vde 0271

Application

Indoors and outdoors, in cable ducks, underground, in power or switching stations, local energy distributions, industry plants, where there is no risk of mechanical damage.

Technical Characteristic

Operating Temperature (max.): 70oC
Operating Temperature: 160oC  (max. 5 Sec.)
Cross Section ≤ 300mm: 160oC (max. 5 Sec.)
Cross Section > 300mm: 140oC (max. 5 Sec.)
Rated Voltage: 0.6/1 Kv
Bending Radius (min.): 12xouter Diameter

Construction

Solid Or Stranded Copper Conductor
Pvc Insulation
Pvc Filler
Pvc Outer Sheat
